100% Made in the USA
Every Splash Zone fixture is designed, manufactured, and assembled in America — fully BABA and BAA compliant for federal and infrastructure projects.
Completely Made in the USA · BABA & BAA Compliant
Splash Zone™ NSF Food-Grade LED Lighting
High-efficacy, IP69K washdown fixtures engineered and manufactured in Texas — including our own circuit boards. Custom tailored to any facility or specification.
Trusted by NASA since 2017. Available to you.
- NSF Food-Grade
- IP69K Rated
- Made in USA
- BABA/BAA Compliant
- Texas-Made Circuit Boards
- Fully Customizable
Trusted by NASA since 2017. Available to you.
- Tyson Foods
- ConAgra
- NASA
- Boeing
- Lockheed Martin
- U.S. Air Force

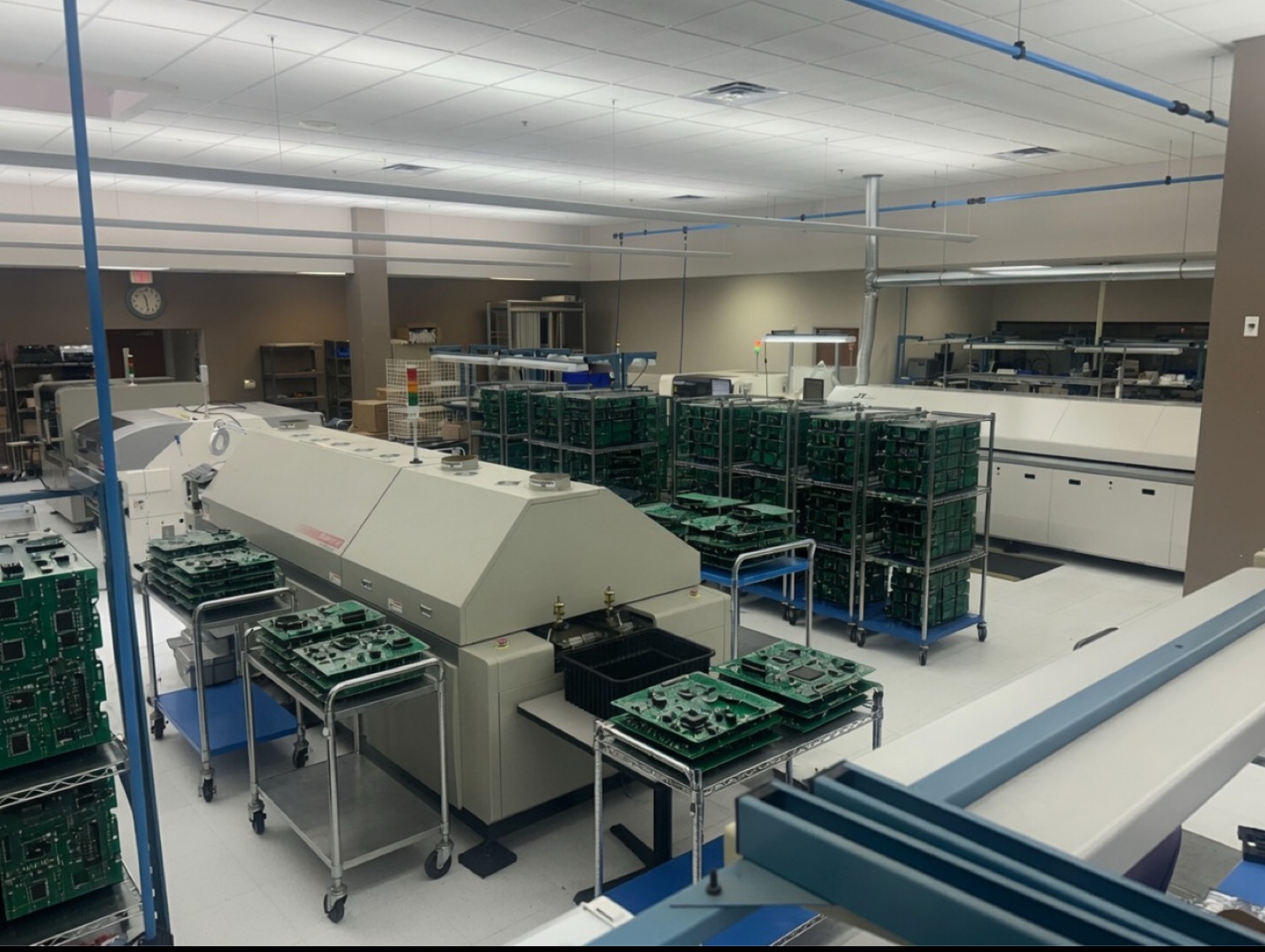

Texas-made circuit boards
The boards come from this room.
Splash Zone housings are specified for NSF splash-zone and IP69 washdown. The electronics inside — the part that makes the fixture yours — are designed, placed, and reflowed on our SMT line in Canton, Texas.
Designed here
LED engines, drive current, and photometrics are specified in Canton — not a generic imported module.
Placed and reflowed here
In-house SMT. Same line, same people, full lot traceability from board to finished Splash Zone fixture.
Built to the spec
Different lumen package, voltage, or control interface? We change the board. Lead times stay short because the line is ours.
Features & benefits
Specified like a fixture. Built like a custom.
IP69 washdown
ProTube withstands high-pressure, high-temperature jets up to 176°F — the sanitation cycle food plants actually run.
NSF food-grade
Certified for splash-zone use in processing plants, packing lines, and cold storage.
5000K, high CRI
Daylight-white standard so produce color, fat trim, and inspection work read true. Other CCTs on request.
Made in USA
Designed, boarded, and assembled in Texas. BABA and BAA compliant — no waivers.
Easy-clean housing
Gasketed vapor-tight linears, plus ProTube’s circular NSF body with stainless end caps — no ledges for residue.
Built to the spec
Lumen package, voltage, optic, mount, and controls engineered to the facility.
Why Splash Zone™
Why Splash Zone™ Is Different
Texas-Made Circuit Boards
We produce our own LED circuit boards right here in Texas and assemble them into NSF / IP69 washdown housings. Tighter quality control, faster lead times, and boards engineered to your electrical and photometric requirements.
NSF Food-Grade + IP69K
Built for the harshest washdown environments. NSF certified for food processing and cold storage, with true IP69K protection against high-pressure, high-temperature cleaning.
Fully Customizable
Need a different lumen package, voltage, mounting, optic, or control interface? We tailor Splash Zone fixtures to your facility — not the other way around.
Applications
Where NSF vapor-tight lighting is specified
Food plants, cold storage, kitchens, and any room that gets washed. Housings and lenses are NSF-listed for the zone. Boards, drivers, and the finished fixture are EnviroLux.

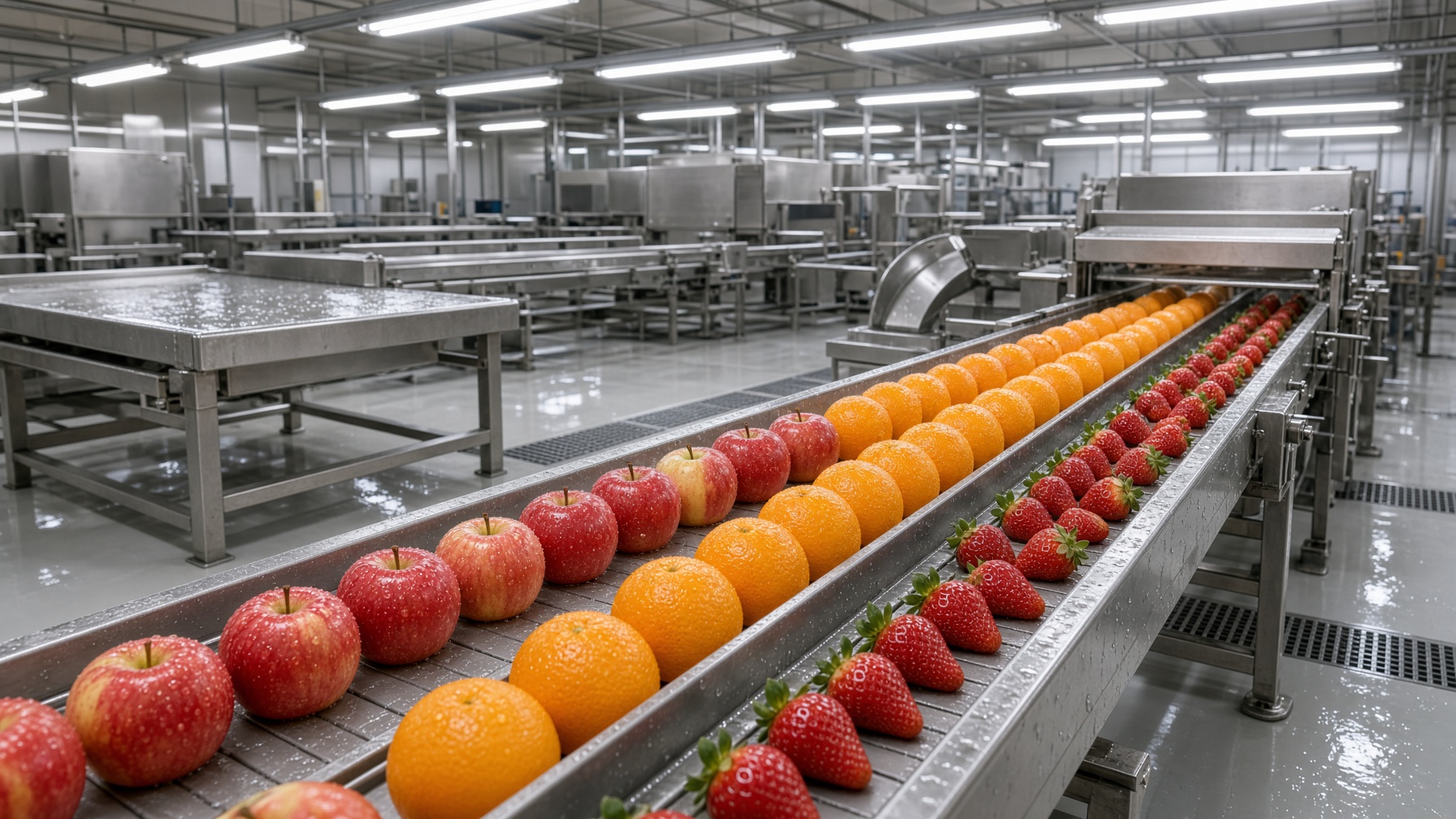

Produce & fruit packing
5000K, high-CRI light over stainless conveyor lines so color, bruise, and grade are obvious on the belt.

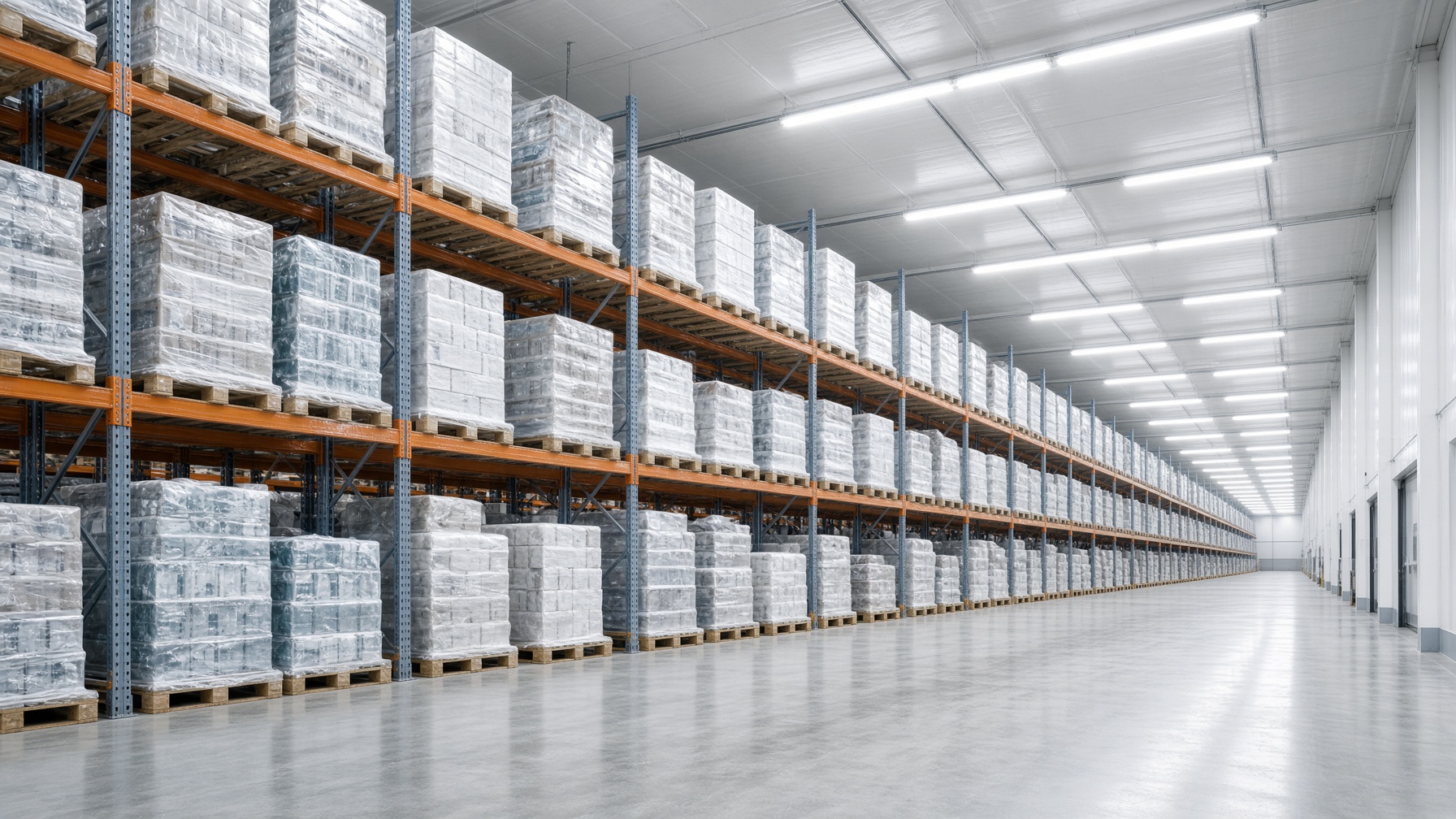

Cold storage
Stable 5000K output in freezer and cooler environments — sealed against condensation, ice, and thermal cycling.
Washdown & sanitation
IP69 housings for close-range, high-temperature spray. Specify the rating that matches the cycle you actually run.
Meat & poultry
Kill floor adjacent rooms, cut, grind, and pack — daily hot sanitation.
Dairy & beverage
Fill lines, tank halls, and bottle rooms with caustic CIP overspray.
Bakeries & prepared foods
Flour, oil, and washdown in the same aisle. Smooth housings, no ledges.
Pharmaceutical
Cleanable, corrosion-resistant luminaires for washable production suites.
Commercial kitchens
NSF splash-zone listed for health-code inspections in prep and cook lines.
Agriculture & poultry houses
Humidity, dust, and hose-down. Amber and 5000K packages available.
Car wash & marine
High-pressure water, chemistry, and salt — NEMA 4X corrosion resistance.
Chemical wash stations
Hose-directed water and aggressive agents. Specify stainless latches.
NSF approved vaportight
The Splash Zone™ lineup
From the EnviroLux NSF vaportight catalog: 2, 4, and 8 ft lengths, narrow and wide bodies, amber to 5000K — plus ProTube washdown and NSF circle high bays. If the stock SKU is not the fixture, we prototype a custom in Texas.
Linear vapor-tight
2, 4, and 8 ft. Narrow and wide body. Amber through 5000K. NSF-category fixtures for food plants, packing lines, and washdown rooms.

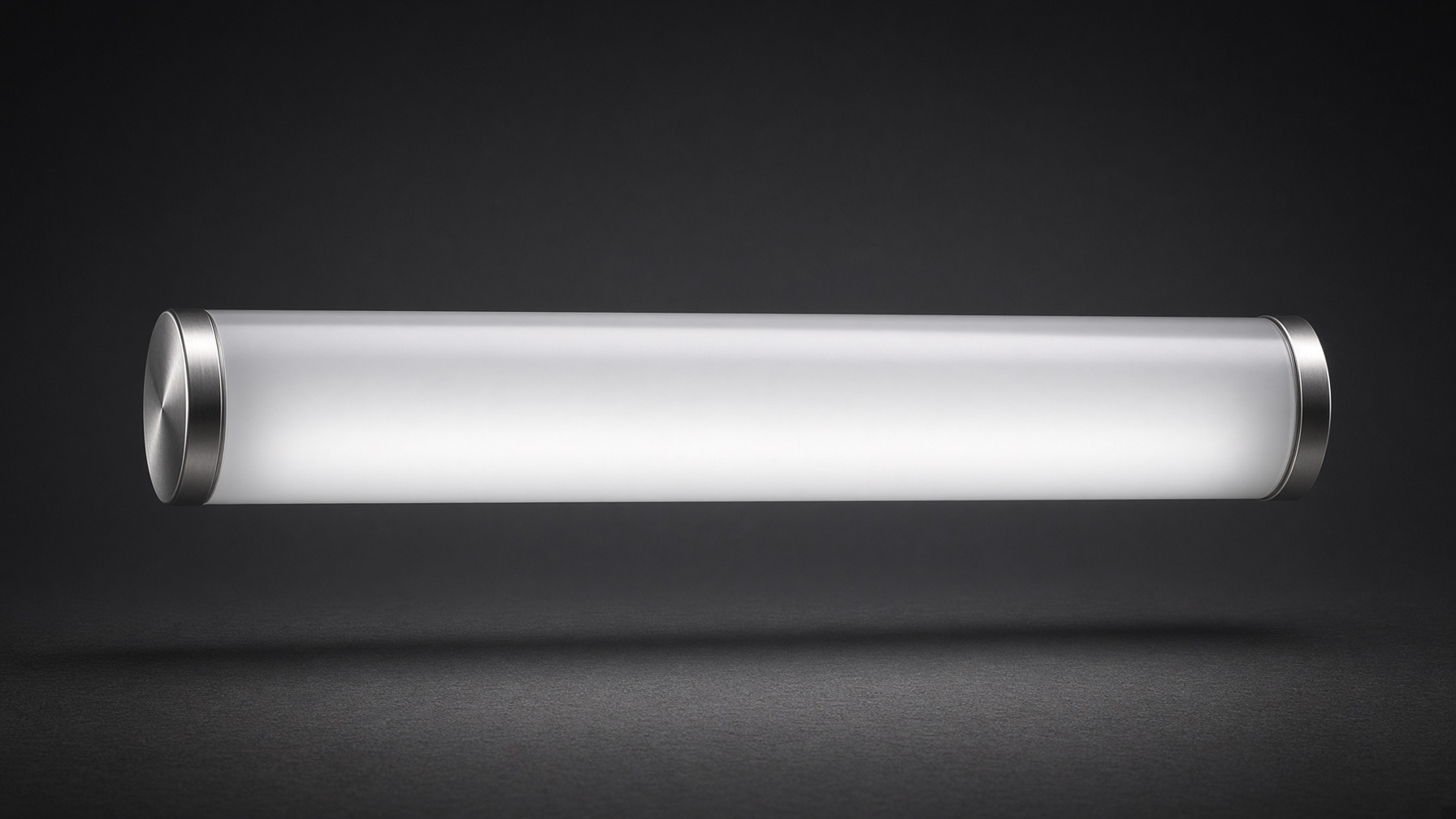

ProTube IP69 washdown
Circular, easy-clean housing with stainless end caps. NSF food-zone. High-pressure, high-temperature sanitation up to 176°F.
NSF circle high bay
Food-grade high bays at 5000K for taller process rooms and refrigerated warehouses — 77W to 200W.
Linear vapor-tight
| Fixture | Body | Length | Watts | Lumens | CCT |
|---|---|---|---|---|---|
| 50W Narrow Body | Narrow | 2 ft | 50 | 9,045 | Amber–5000K |
| 53W Value Series | Value | 4 ft | 53 | 9,587 | Amber–5000K |
| 75W Narrow Body | Narrow | 4 ft | 75 | 13,567 | Amber–5000K |
| 84W Narrow Body | Narrow | 4 ft | 84 | 13,759 | 5000K |
| 98W Narrow Body | Narrow | 4 ft | 98 | 17,728 | 3000–5000K |
| 141W Narrow Body | Narrow | 4 ft | 141 | 25,506 | Amber–5000K |
| 141W Narrow Body | Narrow | 8 ft | 141 | 25,506 | Amber–5000K |
| 149W Wide Body | Wide | 4 ft | 149 | 26,954 | Amber–5000K |
| 180W Wide Body | Wide | 4 ft | 180 | 32,562 | Amber–4000K |
NSF food-grade circle high bay
| Fixture | Body | Length | Watts | Lumens | CCT |
|---|---|---|---|---|---|
| 77W Circle High Bay | NSF high bay | — | 77 | 13,929 | 5000K |
| 100W Circle High Bay | NSF high bay | — | 100 | 17,290 | 5000K |
| 150W Circle High Bay | NSF high bay | — | 150 | 24,570 | 5000K |
| 200W Circle High Bay | Circle | — | 200 | 38,400 | 5000K |
Housing & construction
NSF washdown housings. Texas-made boards inside.
Splash Zone housings and lenses are specified NSF for splash-zone sanitation and IP-rated for the washdown you run. Everything else — LED circuit boards, drivers, photometrics, controls, and final assembly — is designed and manufactured by EnviroLux in Canton, Texas.
Circular IP69 washdown
Smooth polymer tube, stainless-steel end caps, tool-free body and board tray. No ledges for residue. Rated for high-pressure, high-temperature jets up to 176°F at close range.

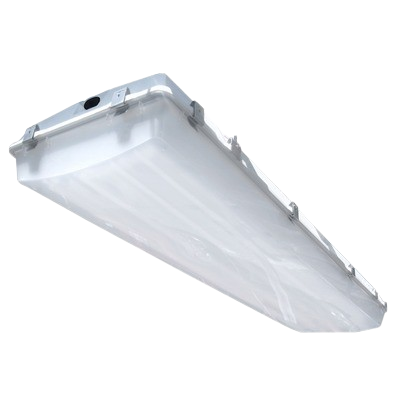

Wide gasketed vapor-tight
UL 5VA fiberglass that will not burn or melt. Pour-in-place polyurethane gasket. Captive latches — polymer or 316 stainless — that stay on the housing during service.

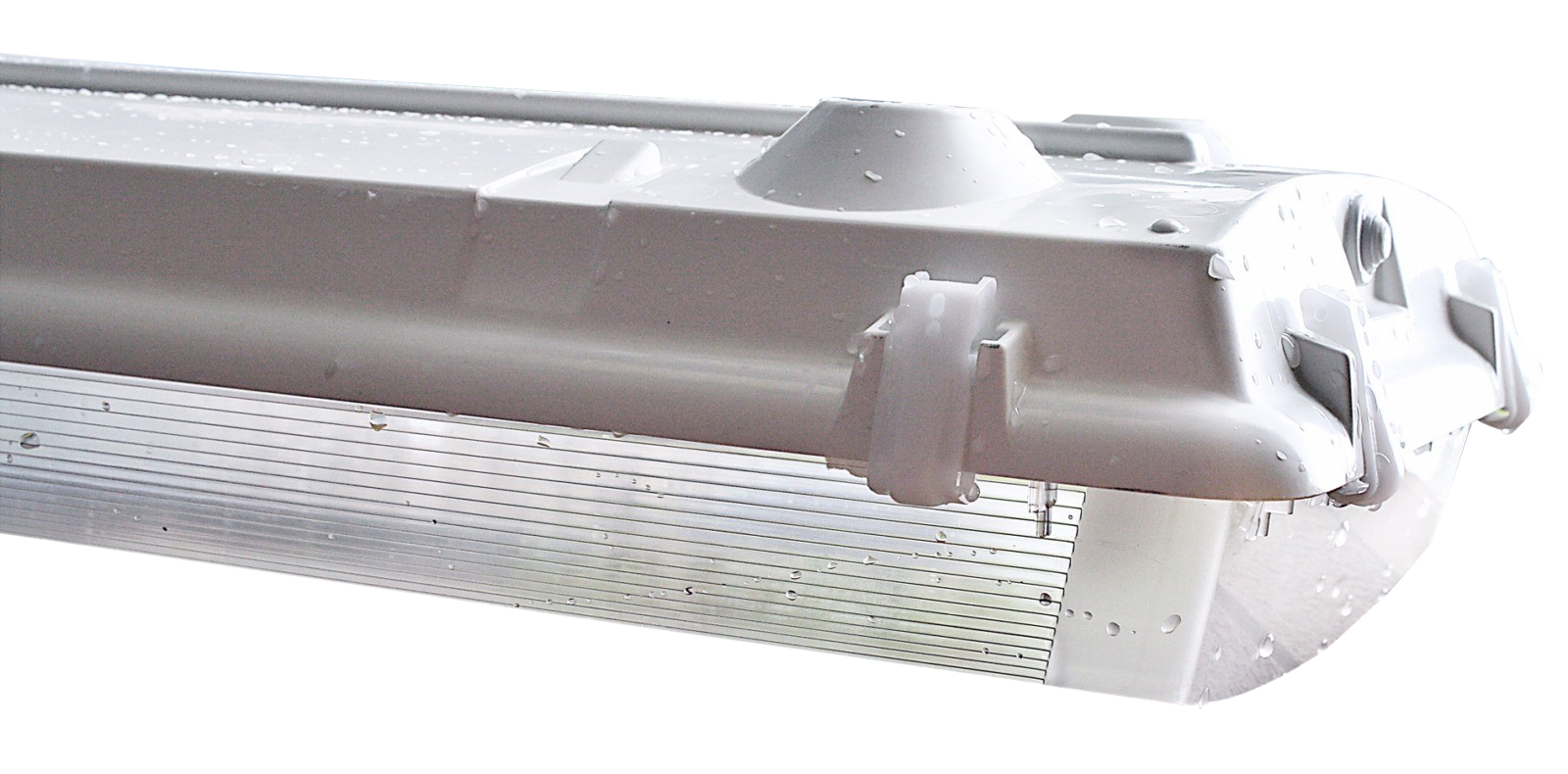

Narrow / mid vapor-tight
Impact-resistant acrylic or polycarbonate lens, F1-rated for UV and moisture. Clear or frosted. Hubs in ½″ and ¾″ NPT for pendant, rigid, or conduit mounts.
Ingress ratings
What the IP number actually means on the plant floor
Vapor-tight is not one rating. Specify the washdown you run — hose, pressure wand, or high-temperature sanitation — and we board the matching housing.
IP65
Dust tight + hose jets
6.3 mm nozzle, about 3 gpm, from all directions. Covered washdown, exteriors, and general wet process.
IP66
Powerful jet wash
12.5 mm nozzle, about 26 gpm, ~15 PSI, any direction. Regular pressure-wash bays and heavy industrial cleaning.
IP67
Temporary submersion
One meter of water for 30 minutes. Flood-prone rooms, wash pits, and condensation-heavy coolers.
IP69
High-pressure steam
Close-range jets up to ~1,450 PSI at 176°F / 80°C. Food, beverage, dairy, and pharma sanitation cycles.
NSF splash-zone certification is separate from IP: it confirms cleanable materials, no bacterial harborage, and suitability around food. NEMA 4X adds corrosion resistance to hose-directed water — salt, chemistry, and sanitation agents.
NSF ratings
What NSF actually certifies — and where the fixture can hang
NSF does not rate brightness. It rates whether the housing and lens belong in a food plant: can they be cleaned, will they harbor bacteria, will they contaminate product. We specify NSF housings and lenses, then board and assemble the fixture in Texas.
Food zone
Surfaces that can contact consumable food. The highest hygiene bar — smooth, cleanable, no harborage, materials safe around product.
Splash zone
Areas hit by routine splashes, spills, and sanitation spray, but not intended as a food-contact surface. Most process-room luminaires live here.
Non-food zone
Rooms not exposed to food or splash, but still subject to dust, debris, and washdown. Warehouses, docks, and service corridors.
What NSF looks for
- Surface smoothness — no crevices for residue or bacteria
- Cleanability — survives the plant’s sanitation chemistry and spray
- Corrosion resistance — stainless hardware, polymer or fiberglass body
- No contamination — materials that will not leach or flake into product
NSF
Independent food-equipment standard
NSF International writes public-health standards for food, water, and consumer goods. A listed luminaire is evaluated to the food-equipment certification — not a self-declared “food grade” label.
Code
Often mandatory, not optional
Many health codes require NSF-certified equipment in processing plants, packing rooms, and commercial kitchens. Specifying it keeps the fixture off the punch list.
IP69
Washdown is a separate test
NSF is about hygiene and cleanability. IP69 is about surviving close-range, high-temperature, high-pressure jets. Splash Zone is specified for both.
Specifications
Splash Zone™ at a glance
Numbers below are from the published EnviroLux NSF vaportight catalog. Need a different lumen, voltage, optic, or control scheme? We engineer the board and the fixture in Texas.
- Product type
- NSF-approved vapor-tight linear, ProTube, and circle high bay
- Certification
- NSF food-grade / splash zone · ProTube IP69 washdown
- Compliance
- Made in USA · BABA & BAA — no waivers
- Electronics
- Texas-made LED circuit boards, aluminum MCPCB, 2 oz copper
- Lengths
- 2 ft, 4 ft, 8 ft · narrow and wide body
- Housing
- F1 acrylic/PC lens · UL 5VA fiberglass or circular polymer · 316 SS hardware
- Seal
- Pour-in-place polyurethane gasket · NEMA 4X
- Lumen packages
- 9,045–38,400 lm published · custom packages available
- Efficacy
- Up to 201 lm/W
- CCT
- 5000K standard on high bays · Amber, 2700K–5000K on linears
- CRI
- >80 standard · >83 on select 2 ft / value SKUs
- Voltage
- 120–277 VAC, 50/60 Hz · PF >0.90 · 6 kV surge
- Controls
- 0–10V dimming standard (100–10%) · photocell / occupancy factory options
- Mounting
- V-hangers standard · latch, rigid, and custom hardware
- Warranty
- 7-year, −40°C to +50°C environment
- Prototype
- In-house, typically 24–48 hours
Custom capability
From spec to Texas-built fixture
- 01
Contact
Tell us the room, the spec, and the constraint. An engineer — not a ticket queue — picks it up.
- 02
Design
Photometrics, electrical, mounting, and controls are drawn around your facility, not a catalog SKU.
- 03
Prototype
In-house boards and fixtures mean a working unit for test, measurement, and compliance in 24–48 hours.
- 04
Production
Approved designs move onto our Texas line — same plant, same people, full supply-chain traceability.
Talk to an engineer
Request a quote
Tell us about the facility and the spec. Requests go to [email protected] — an engineer in Texas typically follows up the same business day.
Prefer the phone? (800) 914-8779
Ready to Specify Splash Zone™ for Your Facility?
Whether you need standard NSF food-grade fixtures or a fully custom solution with Texas-made circuit boards engineered to your exact requirements, our team is ready to help. Completely Made in the USA and BABA/BAA compliant.
Trusted by NASA since 2017. Available to you. · Made in the USA · Texas Circuit Boards · NSF · IP69K · BABA & BAA
